Software device screen. More...

#include <w32std.h>

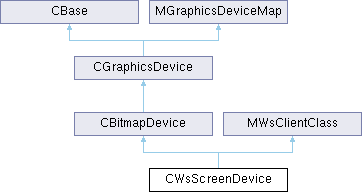

Inheritance diagram for CWsScreenDevice:

Public Types
enum	TSpriteInCompare { ERemoveSprite =0 , EIncludeSprite =1 , EIncludeTextCursor =2 }
	Whether or not to include sprites when comparing areas of the screen. More...

Public Member Functions
IMPORT_C	CWsScreenDevice ()
	Default constructor.

IMPORT_C	CWsScreenDevice (RWsSession &aWs)
	Constructs a new screen device attached to a particular window server session.

IMPORT_C	~CWsScreenDevice ()
	Destructor.

IMPORT_C TInt	Construct ()
	Completes construction of the object.

IMPORT_C TInt	Construct (TInt aDefaultScreenNumber)
	Completes construction of the object.

IMPORT_C TAny *	GetInterface (TUint aInterfaceId)
	Interface Extension capability Use of this interface going forward will allow the published client interface to be dynamically extended.

const TAny *	GetInterface (TUint aInterfaceId) const

IMPORT_C TBool	IsModeDynamic (TInt aSizeMode) const
	Returns whether the given screen size mode is dynamic or not.

IMPORT_C TBool	IsCurrentModeDynamic () const
	Returns whether the current screen size mode is dynamic or not.

IMPORT_C TDisplayMode	DisplayMode () const
	Gets the display mode of the device.

IMPORT_C TSize	SizeInPixels () const
	Gets the size of the device area in pixels.

IMPORT_C TSize	SizeInTwips () const
	Gets the size of the device area in twips.

IMPORT_C TInt	HorizontalTwipsToPixels (TInt aTwips) const
	Converts a horizontal dimension from twips to pixels.

IMPORT_C TInt	VerticalTwipsToPixels (TInt aTwips) const
	Converts a vertical dimension from twips to pixels.

IMPORT_C TInt	HorizontalPixelsToTwips (TInt aPixels) const
	Converts a horizontal dimension from pixels to twips.

IMPORT_C TInt	VerticalPixelsToTwips (TInt aPixels) const
	Converts a vertical dimension from pixels to twips.

IMPORT_C TRect	PointerRect () const
	Gets the active area for the pointing device.

IMPORT_C TInt	CreateContext (CGraphicsContext *&aGc)
	Creates a graphics context for the device.

TInt	CreateContext (CWindowGc *&aGc)
	Creates a graphics context for this device.

virtual IMPORT_C TInt	GetNearestFontInTwips (CFont *&aFont, const TFontSpec &aFontSpec)

virtual IMPORT_C TInt	GetNearestFontToDesignHeightInTwips (CFont *&aFont, const TFontSpec &aFontSpec)

virtual IMPORT_C TInt	GetNearestFontToMaxHeightInTwips (CFont *&aFont, const TFontSpec &aFontSpec, TInt aMaxHeight)

IMPORT_C TInt	NumTypefaces () const
	Gets the number of typefaces supported by the graphics device.

IMPORT_C void	TypefaceSupport (TTypefaceSupport &aTypefaceSupport, TInt aTypefaceIndex) const
	Gets typeface information for a specified typeface.

IMPORT_C TInt	FontHeightInTwips (TInt aTypefaceIndex, TInt aHeightIndex) const
	Get the height of a font in twips.

IMPORT_C void	GetPixel (TRgb &aColor, const TPoint &aPixel) const
	Gets the RGB colour of an individual pixel on a bitmapped graphics device.

IMPORT_C void	GetScanLine (TDes8 &aScanLine, const TPoint &aStartPixel, TInt aPixelLength, TDisplayMode aDispMode) const
	Copies a scanline into a buffer.

IMPORT_C TInt	AddFile (const TDesC &aName, TInt &aId)
	Adds a font file to the device's typeface store.

IMPORT_C void	RemoveFile (TInt aId=0)
	Removes a font file from the font store.

virtual IMPORT_C TInt	GetNearestFontInPixels (CFont *&aFont, const TFontSpec &aFontSpec)

virtual IMPORT_C TInt	GetNearestFontToDesignHeightInPixels (CFont *&aFont, const TFontSpec &aFontSpec)

virtual IMPORT_C TInt	GetNearestFontToMaxHeightInPixels (CFont *&aFont, const TFontSpec &aFontSpec, TInt aMaxHeight)

IMPORT_C TInt	FontHeightInPixels (TInt aTypefaceIndex, TInt aHeightIndex) const
	Gets the height, in pixels, of the specified typeface at one of its defined heights.

IMPORT_C void	ReleaseFont (CFont *aFont)
	Releases the specified font.

IMPORT_C void	PaletteAttributes (TBool &aModifiable, TInt &aNumEntries) const
	Gets the palette attributes of the device.

IMPORT_C void	SetPalette (CPalette *aPalette)
	Sets the device's palette.

IMPORT_C TInt	GetPalette (CPalette *&aPalette) const
	Gets the device's current palette.

IMPORT_C TInt	SetCustomPalette (const CPalette *aPalette)
	Sets the custom palette.

IMPORT_C TInt	GetFontById (CFont *&aFont, TUid aUid, const TAlgStyle &aAlgStyle)
	Gets a font by its bitmap UID.

IMPORT_C TBool	RectCompare (const TRect &aRect1, const TRect &aRect2) const
	Compares two areas of the screen to see if they have the same content.

IMPORT_C TBool	RectCompare (const TRect &aRect1, const TRect &aRect2, TUint aFlags) const
	Compares two areas of the screen to see if they have the same content.

IMPORT_C TInt	CopyScreenToBitmap (const CFbsBitmap *aBitmap) const
	Saves the entire screen to a bitmap.

IMPORT_C TInt	CopyScreenToBitmap (const CFbsBitmap *aBitmap, const TRect &aRect) const
	Saves a region of the screen to a bitmap.

IMPORT_C TInt	SetBackLight (TBool aBackLight)

IMPORT_C void	SetScreenSizeAndRotation (const TPixelsTwipsAndRotation &aSizeAndRotation)
	Sets the current screen size in twips and pixels, and the rotation for the screen device.

IMPORT_C void	GetDefaultScreenSizeAndRotation (TPixelsTwipsAndRotation &aSizeAndRotation) const
	Gets the current screen size (in both pixels and twips) and rotation.

IMPORT_C void	SetScreenSizeAndRotation (const TPixelsAndRotation &aSizeAndRotation)
	Sets the current screen size in pixels, and the rotation for the screen device.

IMPORT_C void	GetDefaultScreenSizeAndRotation (TPixelsAndRotation &aSizeAndRotation) const
	Gets the current screen size (in pixels) and the rotation.

IMPORT_C TScreenModeEnforcement	ScreenModeEnforcement () const
	Gets the current screen mode enforcement settings.

IMPORT_C void	SetScreenModeEnforcement (TScreenModeEnforcement aMode) const
	Sets the screen mode enforcement requirements.

IMPORT_C void	GetScreenModeSizeAndRotation (TInt aMode, TPixelsTwipsAndRotation &aSizeAndRotation) const
	Get the screen rotation and size, in both pixels and twips, for the specified screen mode.

IMPORT_C void	GetScreenModeSizeAndRotation (TInt aMode, TPixelsAndRotation &aSizeAndRotation) const
	Get the screen rotation and size (in pixels) for the specified screen mode.

IMPORT_C void	SetCurrentRotations (TInt aMode, CFbsBitGc::TGraphicsOrientation aRotation) const
	Sets the screen rotation that should be used with a particular screen size.

IMPORT_C TInt	GetRotationsList (TInt aMode, CArrayFixFlat< TInt > *aRotationList) const
	Gets the list of valid rotations for a particular screen size.

IMPORT_C TInt	NumScreenModes () const
	Gets the number of available screen modes.

IMPORT_C void	SetScreenMode (TInt aMode)
	Sets the current screen mode.

IMPORT_C TInt	CurrentScreenMode () const
	Gets the current screen mode index.

IMPORT_C void	SetAppScreenMode (TInt aMode)
	Sets the application's screen mode; this also sets all the attributes of the screen mode.

IMPORT_C TPoint	GetDefaultScreenModeOrigin () const
	Gets the origin for the current screen mode.

IMPORT_C TPoint	GetScreenModeOrigin (TInt aMode) const
	Get the origin of the screen for the specified screen mode.

IMPORT_C TSize	GetCurrentScreenModeScale () const
	Gets the scale for the current screen mode.

IMPORT_C TSize	GetScreenModeScale (TInt aMode) const
	Gets the scale for the specified screen mode.

IMPORT_C TPoint	GetCurrentScreenModeScaledOrigin () const
	Gets the current screen mode's scaled origin.

IMPORT_C TPoint	GetScreenModeScaledOrigin (TInt aMode) const
	Gets the specfied screen mode's scaled origin.

IMPORT_C TInt	GetScreenSizeModeList (RArray< TInt > *aModeList) const
	Gets the available screen size modes.

IMPORT_C TDisplayMode	GetScreenModeDisplayMode (const TInt &aMode) const
	Gets the display mode of the screen for the specified screen mode.

IMPORT_C TSizeMode	GetCurrentScreenModeAttributes () const
	Used for testing purposes only.

IMPORT_C void	SetCurrentScreenModeAttributes (const TSizeMode &aModeAtt)
	Used for testing purposes only.

IMPORT_C TInt	GetScreenNumber () const
	Get device's screen number.

Public Member Functions inherited from CBitmapDevice
TInt	CreateBitmapContext (CBitmapContext *&aGC)
	Creates a bitmap context for this bitmap device.

Public Member Functions inherited from CBase
	CBase ()
	Default constructor.

virtual IMPORT_C	~CBase ()
	Virtual destructor.

TAny *	operator new (TUint aSize, TAny *aBase) __NO_THROW
	Initialises the object to binary zeroes.

TAny *	operator new (TUint aSize) __NO_THROW
	Allocates the object from the heap and then initialises its contents to binary zeroes.

TAny *	operator new (TUint aSize, TLeave)
	Allocates the object from the heap and then initialises its contents to binary zeroes.

TAny *	operator new (TUint aSize, TUint aExtraSize) __NO_THROW
	Allocates the object from the heap and then initialises its contents to binary zeroes.

TAny *	operator new (TUint aSize, TLeave, TUint aExtraSize)
	Allocates the object from the heap and then initialises its contents to binary zeroes.

Public Member Functions inherited from MGraphicsDeviceMap
IMPORT_C	MGraphicsDeviceMap ()
	Default constructor.

virtual IMPORT_C	~MGraphicsDeviceMap ()
	Destructor.

IMPORT_C TPoint	TwipsToPixels (const TPoint &aTwipPoint) const
	Converts a point in twips to a point in pixels.

IMPORT_C TRect	TwipsToPixels (const TRect &aTwipRect) const
	Converts a rectangle in twips to a rectangle in pixels.

IMPORT_C TPoint	PixelsToTwips (const TPoint &aPixelPoint) const
	Converts a point in pixels to a point in twips.

IMPORT_C TRect	PixelsToTwips (const TRect &aPixelRect) const
	Converts a rectangle in pixels to a rectangle in twips.

Public Member Functions inherited from MWsClientClass
	MWsClientClass ()

	MWsClientClass (RWsBuffer *aBuffer)

TInt	WsHandle () const
	Gets the server side handle for the object.

Friends
class	CWindowGc

Additional Inherited Members
Static Public Member Functions inherited from CBase
static IMPORT_C void	Delete (CBase *aPtr)
	Deletes the specified object.

Protected Member Functions inherited from CBase
virtual IMPORT_C TInt	Extension_ (TUint aExtensionId, TAny &a0, TAny a1)
	Extension function.

Protected Member Functions inherited from MWsClientClass
void	Write (const TAny *aData1, TInt aLength1, TInt aLength2, TUint aOpcode) const

void	Write (const TAny aData, TInt aLength, const TAny aData2, TInt aLength2, TUint aOpcode, const TIpcArgs *aIpcArgs=NULL) const

void	Write (const TAny aBuf, TInt aBufLen, TUint aOpcode, const TIpcArgs aIpcArgs=NULL) const

void	Write (TUint aOpcode) const

void	WriteInt (TInt aInt, TUint aOpcode) const

void	WriteRect (const TRect &aRect, TUint aOpcode) const

void	WritePoint (const TPoint &aPoint, TUint aOpcode) const

void	WriteSize (const TSize &aSize, TUint aOpcode) const

TInt	WriteReply (TUint aOpcode, const TIpcArgs *aIpcArgs=NULL) const

TInt	WriteReplyInt (TInt aInt, TUint aOpcode, const TIpcArgs *aIpcArgs=NULL) const

TInt	WriteReply (const TAny aBuf, TInt aBufLen, TUint aOpcode, const TIpcArgs aIpcArgs=NULL) const

TInt	WriteReply (const TAny aBuf, TInt aBufLen, const TAny aBuf2, TInt aBuflen2, TUint aOpcode, const TIpcArgs *aIpcArgs=NULL) const

TInt	WriteReplyP (const TWriteDescriptorType &aReplyPackage, TUint aOpcode) const

TInt	WriteReplyIntP (TInt aInt, const TWriteDescriptorType &aReplyPackage, TUint aOpcode) const

TInt	WriteReplyP (const TAny *aBuf, TInt aBufLen, const TWriteDescriptorType &aReplyPackage, TUint aOpcode) const

TInt	WriteReplyP (const TAny aBuf, TInt aBufLen, const TAny aBuf2, TInt aBuflen2, const TWriteDescriptorType &aReplyPackage, TUint aOpcode) const

TInt	WriteReplyByProvidingRemoteReadAccess (const TAny *aBuf, TInt aBufLen, const TReadDescriptorType &aRemoteReadBuffer, TUint aOpcode) const

void	AddToBitmapArray (const TInt aBitmapHandle) const

void	AsyncRequest (TRequestStatus &aStatus, TUint aOpcode) const

TBool	WindowSizeCacheEnabled () const

void	MarkWindowSizeCacheDirty ()

void	RefreshWindowSizeCache (const TSize &aNewSize) const

TInt	CachedWindowSize (TSize &aSize) const

void	DestroyWindowSizeCacheEntry ()

Protected Attributes inherited from MWsClientClass
TInt32	iWsHandle
	WARNING: Member variable for internal use ONLY.

RWsBuffer *	iBuffer
	WARNING: Member variable for internal use ONLY.

Detailed Description

Software device screen.

An object of this class can be used to enquire or set parameters of the software screen, and determine the physical limits of the device.

CWsScreenDevice gives access to the list of screen modes. These are the combinations of screen rotation and screen size supported by the device. One of them is selected as the current screen mode. The possible screen modes are initialised in wsini.ini.

See also: CFbsScreenDevice

API status: Published to all clients. Released API.

Definition at line 2311 of file w32std.h.

Member Enumeration Documentation

◆ TSpriteInCompare

enum CWsScreenDevice::TSpriteInCompare

Whether or not to include sprites when comparing areas of the screen.

Enumerator

ERemoveSprite

This enum can be specified as the 3rd parameter to CWsScreenDevice::RectCompare(const TRect &aRect1, const TRect &aRect2,TUint aFlags).

When called with the value ERemoveSprite if there are any sprites visible in the areas of the screen being compared then these will not be included in the comparison. The function CWsScreenDevice::RectCompare(const TRect &aRect1,const TRect &aRect2) will not include sprites in the comparison.

EIncludeSprite

This enum can be specified as the 3rd parameter to CWsScreenDevice::RectCompare(const TRect &aRect1, const TRect &aRect2,TUint aFlags).

When called with the value EIncludeSprite if there are any sprites visible in the areas of the screen being compared then these will be included in the comparison.

EIncludeTextCursor

This enum can be specified as the 3rd parameter to CWsScreenDevice::RectCompare(const TRect &aRect1, const TRect &aRect2,TUint aFlags).

When called with the value EIncludeTextCursor if there are any text cursors visible in the areas of the screen being compared then these will be included in the comparison.

Definition at line 2331 of file w32std.h.

Constructor & Destructor Documentation

◆ CWsScreenDevice() [1/2]

IMPORT_C CWsScreenDevice::CWsScreenDevice ( )

Default constructor.

Developers should use the other constructor overload.

(generated from Symbian Developer Library)

◆ CWsScreenDevice() [2/2]

IMPORT_C CWsScreenDevice::CWsScreenDevice ( RWsSession & aWs )

Constructs a new screen device attached to a particular window server session.

Parameters

aWs	The window server session this screen should be attached to.

(generated from Symbian Developer Library)

◆ ~CWsScreenDevice()

IMPORT_C CWsScreenDevice::~CWsScreenDevice ( )

Destructor.

(generated from Symbian Developer Library)

Member Function Documentation

◆ AddFile()

IMPORT_C TInt CWsScreenDevice::AddFile	(	const TDesC &	aName,
		TInt &	aId
	)

virtual

Adds a font file to the device's typeface store.

The specified font file must be accessible to any process, i.e. not located inside an application's private directory.

This pure virtual function is implemented in derived classes.

Parameters

aName	The name of the font file.
aId	On return, contains an ID for the font file.

Returns: KErrNone, if successful; otherwise, another of the system-wide error codes.

Implements CBitmapDevice.

◆ Construct() [1/2]

IMPORT_C TInt CWsScreenDevice::Construct ( )

Completes construction of the object.

This method invokes Construct(TInt aDefaultScreenNumber) with default Screen number.

(generated from Symbian Developer Library)

◆ Construct() [2/2]

IMPORT_C TInt CWsScreenDevice::Construct ( TInt aDefaultScreenNumber )

Completes construction of the object.

Parameters

aDefaultScreenNumber - This is the screen on which an application will start

Panic condition: TW32Panic 17 in debug builds if called on an already constructed object.

(generated from Symbian Developer Library)

◆ CopyScreenToBitmap() [1/2]

IMPORT_C TInt CWsScreenDevice::CopyScreenToBitmap ( const CFbsBitmap * aBitmap ) const

Saves the entire screen to a bitmap.

This function always causes a flush of the window server buffer.

Parameters

aBitmap Bitmap to be filled with the screen image.

(generated from Symbian Developer Library)

◆ CopyScreenToBitmap() [2/2]

IMPORT_C TInt CWsScreenDevice::CopyScreenToBitmap	(	const CFbsBitmap *	aBitmap,
		const TRect &	aRect
	)		const

Saves a region of the screen to a bitmap.

This function always causes a flush of the window server buffer.

Parameters

aBitmap	Bitmap to be filled with the screen region image.
aRect	Screen region to be saved.

(generated from Symbian Developer Library)

◆ CreateContext() [1/2]

IMPORT_C TInt CWsScreenDevice::CreateContext ( CGraphicsContext *& aGC )

virtual

Creates a graphics context for the device.

Parameters

aGC	On return, contains a pointer to the created graphics context.

Returns: KErrNone, if successful; otherwise, another of the system-wide error codes.

Implements CGraphicsDevice.

◆ CreateContext() [2/2]

TInt CWsScreenDevice::CreateContext ( CWindowGc *& aGc )

inline

Creates a graphics context for this device.

This function always causes a flush of the window server buffer.

Parameters

aGc	On successful return, contains a new graphics context referring to this screen device.

Returns: KErrNone if successful, otherwise one of the system-wide error codes.

See also: CGraphicsDevice::CreateContext()

Definition at line 2833 of file w32std.h.

◆ CurrentScreenMode()

IMPORT_C TInt CWsScreenDevice::CurrentScreenMode ( ) const

Gets the current screen mode index.

This function always causes a flush of the window server buffer.

(generated from Symbian Developer Library)

◆ DisplayMode()

IMPORT_C TDisplayMode CWsScreenDevice::DisplayMode ( ) const

virtual

Gets the display mode of the device.

Returns: The display mode of the device.

Implements CGraphicsDevice.

◆ FontHeightInPixels()

IMPORT_C TInt CWsScreenDevice::FontHeightInPixels	(	TInt	aTypefaceIndex,
		TInt	aHeightIndex
	)		const

virtual

Gets the height, in pixels, of the specified typeface at one of its defined heights.

The typeface is identified by by an index. For a given typeface, there are a discrete number of heights; the specific height is also identified by an index.

The value returned is rounded up or down to the nearest font height in pixels.

This pure virtual function is implemented in derived classes.

Parameters

aTypefaceIndex	A typeface index number, in the range: 0 to (NumTypefaces() - 1).
aHeightIndex	A font height index number, in the range: 0 to (iNumHeights - 1) where iNumHeights is a public data member of the TTypefaceSupport object returned by TypefaceSupport().

Returns: The height of the font, in pixels.

See also: TTypefaceSupport; CGraphicsDevice::NumTypefaces(); CGraphicsDevice::TypefaceSupport()

Implements CBitmapDevice.

◆ FontHeightInTwips()

IMPORT_C TInt CWsScreenDevice::FontHeightInTwips	(	TInt	aTypefaceIndex,
		TInt	aHeightIndex
	)		const

virtual

Get the height of a font in twips.

The font is identified by typeface and height.

The value returned is rounded up or down to the nearest font height in twips.

Parameters

aTypefaceIndex	An index identifying the typeface, in the range: 0 to (NumTypefaces() - 1).
aHeightIndex	An index identifying the font height, in the range: 0 to (iNumHeights - 1). Note that iNumHeights is in the TTypefaceSupport object returned by TypefaceSupport().

Returns: The height of the font, in twips.

Implements CGraphicsDevice.

◆ GetCurrentScreenModeAttributes()

IMPORT_C TSizeMode CWsScreenDevice::GetCurrentScreenModeAttributes ( ) const

Used for testing purposes only.

(generated from Symbian Developer Library)

◆ GetCurrentScreenModeScale()

IMPORT_C TSize CWsScreenDevice::GetCurrentScreenModeScale ( ) const

Gets the scale for the current screen mode.

This function always causes a flush of the window server buffer.

(generated from Symbian Developer Library)

◆ GetCurrentScreenModeScaledOrigin()

IMPORT_C TPoint CWsScreenDevice::GetCurrentScreenModeScaledOrigin ( ) const

Gets the current screen mode's scaled origin.

The formula used is (A+B-1)/B

where:

A is the screen mode origin in physical coordinates,
B is the screen mode scale width.

The result obtained is the scaled origin of the present screen mode.

(generated from Symbian Developer Library)

◆ GetDefaultScreenModeOrigin()

IMPORT_C TPoint CWsScreenDevice::GetDefaultScreenModeOrigin ( ) const

Gets the origin for the current screen mode.

This function always causes a flush of the window server buffer.

(generated from Symbian Developer Library)

◆ GetDefaultScreenSizeAndRotation() [1/2]

IMPORT_C void CWsScreenDevice::GetDefaultScreenSizeAndRotation ( TPixelsAndRotation & aSizeAndRotation ) const

Gets the current screen size (in pixels) and the rotation.

This function always causes a flush of the window server buffer.

Parameters

aSizeAndRotation The default screen size in pixels and the rotation.

(generated from Symbian Developer Library)

◆ GetDefaultScreenSizeAndRotation() [2/2]

IMPORT_C void CWsScreenDevice::GetDefaultScreenSizeAndRotation ( TPixelsTwipsAndRotation & aSizeAndRotation ) const

Gets the current screen size (in both pixels and twips) and rotation.

This function always causes a flush of the window server buffer.

Parameters

aSizeAndRotation The default screen size and rotation, defining screen size in both pixels and twips.

(generated from Symbian Developer Library)

◆ GetFontById()

IMPORT_C TInt CWsScreenDevice::GetFontById	(	CFont *&	aFont,
		TUid	aUid,
		const TAlgStyle &	aAlgStyle
	)

Gets a font by its bitmap UID.

Within a font file each font has its own UID. An algorithmic style is not part of the actual font description, but is applied to it. For example algorithmic bolding applies an algorithm to increase the apparent weight of each character in the font. Note that the algorithm is applied blindly, and that a typeface may already have a style e.g. it may already be bold or italic. Thus a bold face will appear extra-bold if algorithmic bolding is applied to it. Algorithmic effects are not necessarily a substitute for typeface design and should be used with care.

Parameters

aFont	On a successful return, contains a pointer to the new CFont.
aUid	UID of the bitmap font.
aAlgStyle	The algorithmic style to apply.

(generated from Symbian Developer Library)

◆ GetInterface() [1/2]

IMPORT_C TAny * CWsScreenDevice::GetInterface ( TUint aInterfaceId )

Interface Extension capability Use of this interface going forward will allow the published client interface to be dynamically extended.

Note that the pointer returned is only good for the lifetime of the called CBase derived object.

Parameters

aInterfaceId uniqueid or well known id of interface

(generated from Symbian Developer Library)

◆ GetInterface() [2/2]

const TAny * CWsScreenDevice::GetInterface ( TUint aInterfaceId ) const

inline

Definition at line 2828 of file w32std.h.

◆ GetNearestFontInPixels()

IMPORT_C TInt CWsScreenDevice::GetNearestFontInPixels	(	CFont *&	aFont,
		const TFontSpec &	aFontSpec
	)

virtual

Parameters

aFont	On return, this is set to point to the device font that is closest to the font specification passed in the second argument
aFontSpec	An absolute font specification

(generated from Symbian Developer Library)

Implements CBitmapDevice.

◆ GetNearestFontInTwips()

IMPORT_C TInt CWsScreenDevice::GetNearestFontInTwips	(	CFont *&	aFont,
		const TFontSpec &	aFontSpec
	)

virtual

Parameters

aFont	On return, this is set to point to the device font closest to the font specification passed in the second argument.
aFontSpec	An absolute font specification.

(generated from Symbian Developer Library)

Implements MGraphicsDeviceMap.

◆ GetNearestFontToDesignHeightInPixels()

IMPORT_C TInt CWsScreenDevice::GetNearestFontToDesignHeightInPixels	(	CFont *&	aFont,
		const TFontSpec &	aFontSpec
	)

virtual

Parameters

aFont	On return, the pointer is set to point to the device font which most closely approximates to the required font specification.
aFontSpec	An absolute font specification.

(generated from Symbian Developer Library)

Reimplemented from CBitmapDevice.

◆ GetNearestFontToDesignHeightInTwips()

IMPORT_C TInt CWsScreenDevice::GetNearestFontToDesignHeightInTwips	(	CFont *&	aFont,
		const TFontSpec &	aFontSpec
	)

virtual

Parameters

aFont	On return, the pointer is set to point to the device font which most closely approximates to the required font specification.
aFontSpec	An absolute font specification.

(generated from Symbian Developer Library)

Reimplemented from MGraphicsDeviceMap.

◆ GetNearestFontToMaxHeightInPixels()

IMPORT_C TInt CWsScreenDevice::GetNearestFontToMaxHeightInPixels	(	CFont *&	aFont,
		const TFontSpec &	aFontSpec,
		TInt	aMaxHeight
	)

virtual

Parameters

aFont	On return, the pointer is set to point to the device font which most closely approximates to the required font specification.
aFontSpec	An absolute font specification.
aMaxHeight	The maximum height within which the font must fit - this overrides the height specified in the TFontSpec.

(generated from Symbian Developer Library)

Reimplemented from CBitmapDevice.

◆ GetNearestFontToMaxHeightInTwips()

IMPORT_C TInt CWsScreenDevice::GetNearestFontToMaxHeightInTwips	(	CFont *&	aFont,
		const TFontSpec &	aFontSpec,
		TInt	aMaxHeight
	)

virtual

Parameters

aFont	On return, the pointer is set to point to the device font which most closely approximates to the required font specification.
aFontSpec	An absolute font specification.
aMaxHeight	The maximum height within which the font must fit - this overrides the height specified in the TFontSpec.

(generated from Symbian Developer Library)

Reimplemented from MGraphicsDeviceMap.

◆ GetPalette()

IMPORT_C TInt CWsScreenDevice::GetPalette ( CPalette *& aPalette ) const

virtual

Gets the device's current palette.

This function is only supported if the device has a modifiable palette, which can be determined by calling PaletteAttributes().

Parameters

aPalette On return, holds the device's current palette.

Returns: KErrNone, if successful; otherwise, another of the system-wide error codes.

Implements CGraphicsDevice.

◆ GetPixel()

IMPORT_C void CWsScreenDevice::GetPixel	(	TRgb &	aColor,
		const TPoint &	aPixel
	)		const

virtual

Gets the RGB colour of an individual pixel on a bitmapped graphics device.

This pure virtual function is implemented in derived classes.

Parameters

aColor	On return, should contain the RGB colour of the pixel.
aPixel	The (x,y) co-ordinates of the pixel. The top left pixel is (0,0).

Implements CBitmapDevice.

◆ GetRotationsList()

IMPORT_C TInt CWsScreenDevice::GetRotationsList	(	TInt	aMode,
		CArrayFixFlat< TInt > *	aRotationList
	)		const

Gets the list of valid rotations for a particular screen size.

The list is initialised in wsini.ini.

This function always causes a flush of the window server buffer.

SetCurrentRotations()

Parameters

aMode	The index of the screen mode for which the rotation list is required.
aRotationList	The list of valid screen orientations.

(generated from Symbian Developer Library)

◆ GetScanLine()

IMPORT_C void CWsScreenDevice::GetScanLine	(	TDes8 &	aBuf,
		const TPoint &	aStartPixel,
		TInt	aLength,
		TDisplayMode	aDispMode
	)		const

virtual

Copies a scanline into a buffer.

The pixels are converted from the display mode format on the bitmapped graphics device to the format of the specified device display mode.

By specifying the start pixel and the number of pixels, either the whole or a portion of a bitmapped graphics device pixel row may be copied.

This pure virtual function is implemented in derived classes.

Parameters

aBuf	An 8 bit modifiable descriptor buffer into which pixels are copied; it must be sufficiently large to store all the scanline pixels.
aStartPixel	The (x,y) co-ordinates of the first pixel of the bitmap scanline to be put into the buffer.
aLength	The number of pixels to put into the buffer.
aDispMode	The display mode into which to convert the pixels.

Implements CBitmapDevice.

◆ GetScreenModeDisplayMode()

IMPORT_C TDisplayMode CWsScreenDevice::GetScreenModeDisplayMode ( const TInt & aMode ) const

Gets the display mode of the screen for the specified screen mode.

This function always causes a flush of the window server buffer.

Parameters

aMode The index of the screen mode for which the display mode is required

(generated from Symbian Developer Library)

◆ GetScreenModeOrigin()

IMPORT_C TPoint CWsScreenDevice::GetScreenModeOrigin ( TInt aMode ) const

Get the origin of the screen for the specified screen mode.

This function always causes a flush of the window server buffer.

Parameters

aMode The index of the screen mode for which the screen origin is required.

(generated from Symbian Developer Library)

◆ GetScreenModeScale()

IMPORT_C TSize CWsScreenDevice::GetScreenModeScale ( TInt aMode ) const

Gets the scale for the specified screen mode.

This function always causes a flush of the window server buffer.

Parameters

aMode The index of the screen mode for which the screen scale is required.

(generated from Symbian Developer Library)

◆ GetScreenModeScaledOrigin()

IMPORT_C TPoint CWsScreenDevice::GetScreenModeScaledOrigin ( TInt aMode ) const

Gets the specfied screen mode's scaled origin.

The functionality is same as CWsScreenDevice::GetCurrentScreenModeScaledOrigin().

It always causes a flush of the window server buffer.

Parameters

aMode The index of the screen mode for which the scaled origin is required.

(generated from Symbian Developer Library)

◆ GetScreenModeSizeAndRotation() [1/2]

IMPORT_C void CWsScreenDevice::GetScreenModeSizeAndRotation	(	TInt	aMode,
		TPixelsAndRotation &	aSizeAndRotation
	)		const

Get the screen rotation and size (in pixels) for the specified screen mode.

This function always causes a flush of the window server buffer.

Parameters

aMode	The index of the screen mode for which the screen size and rotation are required.
aSizeAndRotation	The orientation of the specified screen mode, and its size in pixels.

(generated from Symbian Developer Library)

◆ GetScreenModeSizeAndRotation() [2/2]

IMPORT_C void CWsScreenDevice::GetScreenModeSizeAndRotation	(	TInt	aMode,
		TPixelsTwipsAndRotation &	aSizeAndRotation
	)		const

Get the screen rotation and size, in both pixels and twips, for the specified screen mode.

This function always causes a flush of the window server buffer.

Parameters

aMode	The index of the screen mode for which the screen size and rotation are required.
aSizeAndRotation	The orientation of the specified screen mode, and its size in both pixels and twips.

(generated from Symbian Developer Library)

◆ GetScreenNumber()

IMPORT_C TInt CWsScreenDevice::GetScreenNumber ( ) const

Get device's screen number.

CWsScreenDevice::Construct( TInt aDefaultScreenNumber )

(generated from Symbian Developer Library)

◆ GetScreenSizeModeList()

IMPORT_C TInt CWsScreenDevice::GetScreenSizeModeList ( RArray< TInt > * aModeList ) const

Gets the available screen size modes.

This function retrieves all available screen size modes which are supported by the server.

Parameters

aModeList On return, the list of available screen size modes.

(generated from Symbian Developer Library)

◆ HorizontalPixelsToTwips()

IMPORT_C TInt CWsScreenDevice::HorizontalPixelsToTwips ( TInt aPixels ) const

virtual

Converts a horizontal dimension from pixels to twips.

An implementation is supplied by a derived class.

Parameters

aPixels A horizontal dimension of a device in pixels.

Returns: A horizontal dimension of a device in twips.

Implements MGraphicsDeviceMap.

◆ HorizontalTwipsToPixels()

IMPORT_C TInt CWsScreenDevice::HorizontalTwipsToPixels ( TInt aTwips ) const

virtual

Converts a horizontal dimension from twips to pixels.

An implementation is supplied by a derived class.

Parameters

aTwips A horizontal dimension of a device in twips.

Returns: A horizontal dimension of a device in pixels.

Implements MGraphicsDeviceMap.

◆ IsCurrentModeDynamic()

IMPORT_C TBool CWsScreenDevice::IsCurrentModeDynamic ( ) const

Returns whether the current screen size mode is dynamic or not.

IsModeDynamic

(generated from Symbian Developer Library)

◆ IsModeDynamic()

IMPORT_C TBool CWsScreenDevice::IsModeDynamic ( TInt aSizeMode ) const

Returns whether the given screen size mode is dynamic or not.

Dynamic screen size modes may change their size in pixels and/or twips and other attributes at run time, so they must not be cached. Static size mode attributes will not change at run time, but may not make full use of the display. Invalid size modes shall return EFalse.

Parameters

aSizeMode The screen size mode to check.

(generated from Symbian Developer Library)

◆ NumScreenModes()

IMPORT_C TInt CWsScreenDevice::NumScreenModes ( ) const

Gets the number of available screen modes.

Each mode has a different size, and one or more possible rotations/orientations.

This function always causes a flush of the window server buffer.

(generated from Symbian Developer Library)

◆ NumTypefaces()

IMPORT_C TInt CWsScreenDevice::NumTypefaces ( ) const

virtual

Gets the number of typefaces supported by the graphics device.

Returns: The number of typefaces supported.

Implements CGraphicsDevice.

◆ PaletteAttributes()

IMPORT_C void CWsScreenDevice::PaletteAttributes	(	TBool &	aModifiable,
		TInt &	aNumEntries
	)		const

virtual

Gets the palette attributes of the device.

Parameters

aModifiable	On return, holds information on whether or not the device's palette is modifiable (ETrue) or fixed (EFalse).
aNumEntries	On return, holds the number of entries in the device's palette.

Implements CGraphicsDevice.

◆ PointerRect()

IMPORT_C TRect CWsScreenDevice::PointerRect ( ) const

Gets the active area for the pointing device.

This is a device-dependent parameter, and will typically depend on the screen size and other factors.

This function always causes a flush of the window server buffer.

(generated from Symbian Developer Library)

◆ RectCompare() [1/2]

IMPORT_C TBool CWsScreenDevice::RectCompare	(	const TRect &	aRect1,
		const TRect &	aRect2
	)		const

Compares two areas of the screen to see if they have the same content.

If there are any sprites on the screen they are not included in the comparison.

This function always causes a flush of the window server buffer.

Parameters

aRect1	A rectangle.
aRect2	Another rectangle.

(generated from Symbian Developer Library)

◆ RectCompare() [2/2]

IMPORT_C TBool CWsScreenDevice::RectCompare	(	const TRect &	aRect1,
		const TRect &	aRect2,
		TUint	aFlags
	)		const

Compares two areas of the screen to see if they have the same content.

This function always causes a flush of the window server buffer.

Parameters

aRect1	A rectangle.
aRect2	Another rectangle.
aFlags	EIncludeSprite to include the sprite in the compare or ERemoveSprite to remove the sprite.

(generated from Symbian Developer Library)

◆ ReleaseFont()

IMPORT_C void CWsScreenDevice::ReleaseFont ( CFont * aFont )

virtual

Releases the specified font.

It is used to indicate that the specified font is no longer needed for use by the device map. As fonts can be shared between applications, this function does not delete the copy of the font from RAM unless the font was only being used by this particular device map.

An implementation is supplied by a derived class.

Parameters

aFont A pointer to the font to be released.

Implements MGraphicsDeviceMap.

◆ RemoveFile()

IMPORT_C void CWsScreenDevice::RemoveFile ( TInt aId = 0 )

virtual

Removes a font file from the font store.

This pure virtual function is implemented in derived classes.

Parameters

aId	The ID of the font file to be removed. The default is 0.

Implements CBitmapDevice.

◆ ScreenModeEnforcement()

IMPORT_C TScreenModeEnforcement CWsScreenDevice::ScreenModeEnforcement ( ) const

Gets the current screen mode enforcement settings.

The global screen mode enforcement setting defines the requirements that a group window must meet to be displayed. The requirements may have been set in wsini.ini, or using SetScreenModeEnforcement().

This function always causes a flush of the window server buffer.

(generated from Symbian Developer Library)

◆ SetAppScreenMode()

IMPORT_C void CWsScreenDevice::SetAppScreenMode ( TInt aMode )

Sets the application's screen mode; this also sets all the attributes of the screen mode.

Note: although this API was added in Symbian OS v8.0, the functionality is only available from Symbian OS v8.1 onwards.

Parameters

aMode The index of the application's new screen mode.

(generated from Symbian Developer Library)

◆ SetBackLight()

IMPORT_C TInt CWsScreenDevice::SetBackLight ( TBool aBackLight )

capability: EikServ SID

(generated from Symbian Developer Library)

◆ SetCurrentRotations()

IMPORT_C void CWsScreenDevice::SetCurrentRotations	(	TInt	aMode,
		CFbsBitGc::TGraphicsOrientation	aRotation
	)		const

Sets the screen rotation that should be used with a particular screen size.

After calling this function, whenever you change into the screen size specified by aMode you will have the rotation aRotation. The setting remains in force until it is explicitly changed using this function.

Panics if the specified rotation is not allowed by the given screen mode.

Parameters

aMode	The index of the screen mode the rotation applies to.
aRotation	The new screen orientation.

capability: WriteDeviceData

(generated from Symbian Developer Library)

◆ SetCurrentScreenModeAttributes()

IMPORT_C void CWsScreenDevice::SetCurrentScreenModeAttributes ( const TSizeMode & aModeAtt )

Used for testing purposes only.

Parameters

aModeAtt Screen size mode to be set.

(generated from Symbian Developer Library)

◆ SetCustomPalette()

IMPORT_C TInt CWsScreenDevice::SetCustomPalette ( const CPalette * aPalette )

Sets the custom palette.

This function always causes a flush of the window server buffer.

Parameters

aPalette The custom palette.

Panic condition: W32 6 aPalette is NULL.

capability: WriteDeviceData

(generated from Symbian Developer Library)

◆ SetPalette()

IMPORT_C void CWsScreenDevice::SetPalette ( CPalette * aPalette )

virtual

Sets the device's palette.

Setting the palette is only possible if the device has a modifiable palette, which can be determined by calling PaletteAttributes().

Parameters

aPalette The new palette for the device.

Implements CGraphicsDevice.

◆ SetScreenMode()

IMPORT_C void CWsScreenDevice::SetScreenMode ( TInt aMode )

Sets the current screen mode.

Note that this function is only useful for testing. This is because the screen mode normally reflects the state of real hardware, e.g. whether the cover is open or closed on a phone that supports screen flipping.

This function always causes a flush of the window server buffer.

Parameters

aMode The screen mode index, starting from zero.

capability: WriteDeviceData

(generated from Symbian Developer Library)

◆ SetScreenModeEnforcement()

IMPORT_C void CWsScreenDevice::SetScreenModeEnforcement ( TScreenModeEnforcement aMode ) const

Sets the screen mode enforcement requirements.

This global setting defines the requirements that a group window must meet to be displayed. The value may be set using this function, but is more likely to be defined in wsini.ini.

Parameters

aMode The screen mode enforcement requirements.

capability: WriteDeviceData

(generated from Symbian Developer Library)

◆ SetScreenSizeAndRotation() [1/2]

IMPORT_C void CWsScreenDevice::SetScreenSizeAndRotation ( const TPixelsAndRotation & aSizeAndRotation )

Sets the current screen size in pixels, and the rotation for the screen device.

This function always causes a flush of the window server buffer.

Parameters

aSizeAndRotation The new rotation and the screen size in pixels.

(generated from Symbian Developer Library)

◆ SetScreenSizeAndRotation() [2/2]

IMPORT_C void CWsScreenDevice::SetScreenSizeAndRotation ( const TPixelsTwipsAndRotation & aSizeAndRotation )

Sets the current screen size in twips and pixels, and the rotation for the screen device.

Parameters

aSizeAndRotation The new rotation and the screen size in both pixels and twips.

(generated from Symbian Developer Library)

◆ SizeInPixels()

IMPORT_C TSize CWsScreenDevice::SizeInPixels ( ) const

virtual

Gets the size of the device area in pixels.

Returns: The width and height of the device area, in pixels

Implements CGraphicsDevice.

◆ SizeInTwips()

IMPORT_C TSize CWsScreenDevice::SizeInTwips ( ) const

virtual

Gets the size of the device area in twips.

Returns: The width and height of the device area, in twips

Implements CGraphicsDevice.

◆ TypefaceSupport()

IMPORT_C void CWsScreenDevice::TypefaceSupport	(	TTypefaceSupport &	aTypefaceSupport,
		TInt	aTypefaceIndex
	)		const

virtual

Gets typeface information for a specified typeface.

This information is returned in aTypefaceSupport, and includes:

the typeface name and typeface attributes

the number of font heights

the maximum and minimum font heights

whether it is a scalable typeface

Parameters

aTypefaceSupport	On return, contains the typeface information.
aTypefaceIndex	A typeface index number, in the range: zero to (NumTypefaces() - 1).

See also: NumTypefaces()

Implements CGraphicsDevice.

◆ VerticalPixelsToTwips()

IMPORT_C TInt CWsScreenDevice::VerticalPixelsToTwips ( TInt aPixels ) const

virtual

Converts a vertical dimension from pixels to twips.

An implementation is supplied by a derived class.

Parameters

aPixels A vertical dimension of a device in pixels.

Returns: A vertical dimension of a device in twips.

Implements MGraphicsDeviceMap.

◆ VerticalTwipsToPixels()

IMPORT_C TInt CWsScreenDevice::VerticalTwipsToPixels ( TInt aTwips ) const

virtual

Converts a vertical dimension from twips to pixels.

An implementation is supplied by a derived class.

Parameters

aTwips A vertical dimension of a device in twips.

Returns: A vertical dimension of a device in pixels.

Implements MGraphicsDeviceMap.

Friends And Related Symbol Documentation

◆ CWindowGc

friend class CWindowGc

friend

Definition at line 2437 of file w32std.h.

The documentation for this class was generated from the following files:

Public Types

Public Member Functions

Friends

Additional Inherited Members

Detailed Description

Member Enumeration Documentation

◆ TSpriteInCompare

Constructor & Destructor Documentation

◆ CWsScreenDevice() [1/2]

◆ CWsScreenDevice() [2/2]

◆ ~CWsScreenDevice()

Member Function Documentation

◆ AddFile()

◆ Construct() [1/2]

◆ Construct() [2/2]

◆ CopyScreenToBitmap() [1/2]

◆ CopyScreenToBitmap() [2/2]

◆ CreateContext() [1/2]

◆ CreateContext() [2/2]

◆ CurrentScreenMode()

◆ DisplayMode()

◆ FontHeightInPixels()

◆ FontHeightInTwips()

◆ GetCurrentScreenModeAttributes()

◆ GetCurrentScreenModeScale()

◆ GetCurrentScreenModeScaledOrigin()

◆ GetDefaultScreenModeOrigin()

◆ GetDefaultScreenSizeAndRotation() [1/2]

◆ GetDefaultScreenSizeAndRotation() [2/2]

◆ GetFontById()

◆ GetInterface() [1/2]

◆ GetInterface() [2/2]

◆ GetNearestFontInPixels()

◆ GetNearestFontInTwips()

◆ GetNearestFontToDesignHeightInPixels()

◆ GetNearestFontToDesignHeightInTwips()

◆ GetNearestFontToMaxHeightInPixels()

◆ GetNearestFontToMaxHeightInTwips()

◆ GetPalette()

◆ GetPixel()

◆ GetRotationsList()

◆ GetScanLine()

◆ GetScreenModeDisplayMode()

◆ GetScreenModeOrigin()

◆ GetScreenModeScale()

◆ GetScreenModeScaledOrigin()

◆ GetScreenModeSizeAndRotation() [1/2]

◆ GetScreenModeSizeAndRotation() [2/2]

◆ GetScreenNumber()

◆ GetScreenSizeModeList()

◆ HorizontalPixelsToTwips()

◆ HorizontalTwipsToPixels()

◆ IsCurrentModeDynamic()

◆ IsModeDynamic()

◆ NumScreenModes()

◆ NumTypefaces()

◆ PaletteAttributes()

◆ PointerRect()

◆ RectCompare() [1/2]

◆ RectCompare() [2/2]

◆ ReleaseFont()

◆ RemoveFile()

◆ ScreenModeEnforcement()

◆ SetAppScreenMode()

◆ SetBackLight()

◆ SetCurrentRotations()

◆ SetCurrentScreenModeAttributes()

◆ SetCustomPalette()

◆ SetPalette()

◆ SetScreenMode()

◆ SetScreenModeEnforcement()

◆ SetScreenSizeAndRotation() [1/2]

◆ SetScreenSizeAndRotation() [2/2]

◆ SizeInPixels()

◆ SizeInTwips()

◆ TypefaceSupport()

◆ VerticalPixelsToTwips()

◆ VerticalTwipsToPixels()

Friends And Related Symbol Documentation

◆ CWindowGc
