A base class that provides implementation for the link object of a doubly linked list. More...

#include <e32std.h>

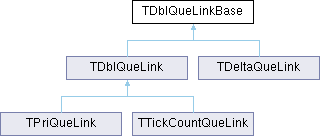

Inheritance diagram for TDblQueLinkBase:

Public Member Functions
	TDblQueLinkBase ()
	Default constructor.

IMPORT_C void	Enque (TDblQueLinkBase *aLink)
	Inserts this link object after the specified link object.

IMPORT_C void	AddBefore (TDblQueLinkBase *aLink)
	Inserts this link object before the specified link object.

Public Attributes
TDblQueLinkBase *	iNext
	A pointer to the next link object in the list.

TDblQueLinkBase *	iPrev
	A pointer to the previous link object in the list.

Detailed Description

A base class that provides implementation for the link object of a doubly linked list.

It also encapsulates pointers both to the next and the previous link objects in the doubly linked list.

The class is abstract and is not intended to be instantiated.

See also: TDblQueLink

API status: Published to all clients. Released API.

Definition at line 150 of file e32std.h.

Constructor & Destructor Documentation

◆ TDblQueLinkBase()

TDblQueLinkBase::TDblQueLinkBase ( )

inline

Default constructor.

It sets the pointer to the next link object to NULL.

See also: iNext

Definition at line 153 of file e32std.h.

Member Function Documentation

◆ AddBefore()

IMPORT_C void TDblQueLinkBase::AddBefore ( TDblQueLinkBase * aLink )

Inserts this link object before the specified link object.

The specified link object must already be in the doubly linked list.

The function cannot be used to insert a list element into the beginning or end of a doubly linked list; this is handled by the TDblQue::AddFirst() and TDblQue::AddLast() functions.

TDblQue

Parameters

aLink A pointer to the link object embedded within the list element to which this link object is to be connected. It must not be NULL.

(generated from Symbian Developer Library)

◆ Enque()

IMPORT_C void TDblQueLinkBase::Enque ( TDblQueLinkBase * aLink )

Inserts this link object after the specified link object.

The specified link object must already be in the doubly linked list.

The function cannot be used to insert a list element into the beginning or end of a doubly linked list; this is handled by the TDblQue::AddFirst() and TDblQue::AddLast() functions.

TDblQue

Parameters

aLink A pointer to the link object embedded within the list element to which this link object is to be connected. It must not be NULL.

(generated from Symbian Developer Library)

Member Data Documentation

◆ iNext

TDblQueLinkBase* TDblQueLinkBase::iNext

A pointer to the next link object in the list.

Definition at line 168 of file e32std.h.

◆ iPrev

TDblQueLinkBase* TDblQueLinkBase::iPrev

A pointer to the previous link object in the list.

Definition at line 173 of file e32std.h.
