An implementation base class for variable length arrays. More...

#include <e32base.h>

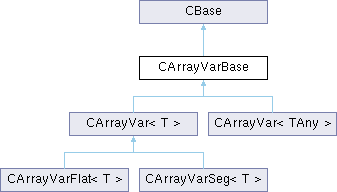

Inheritance diagram for CArrayVarBase:

Public Member Functions
IMPORT_C	~CArrayVarBase ()
	Destructor.

TInt	Count () const
	Gets the number of elements held in the array.

IMPORT_C TInt	Length (TInt anIndex) const
	Gets the length of a specific element.

IMPORT_C void	Compress ()
	Removes excess space from the array buffer.

IMPORT_C void	Reset ()
	Deletes all elements from the array and frees the memory allocated to the array buffer.

IMPORT_C TInt	Sort (TKeyArrayVar &aKey)
	Sorts the elements of the array into key sequence.

IMPORT_C TAny *	At (TInt anIndex) const
	Return a pointer to the data in the array.

IMPORT_C void	Delete (TInt anIndex)
	Removes one element from the array.

IMPORT_C void	Delete (TInt anIndex, TInt aCount)
	Removes one or more contiguous elements from the array, starting at the specified position.

IMPORT_C TAny *	ExpandL (TInt anIndex, TInt aLength)
	Expand the array at anIndex.

IMPORT_C TInt	Find (const TAny *aPtr, TKeyArrayVar &aKey, TInt &anIndex) const
	Find using a sequential search.

IMPORT_C TInt	FindIsq (const TAny *aPtr, TKeyArrayVar &aKey, TInt &anIndex) const
	Find using a binary search.

IMPORT_C void	InsertL (TInt anIndex, const TAny *aPtr, TInt aLength)
	Insert a new record in the array.

IMPORT_C TInt	InsertIsqL (const TAny *aPtr, TInt aLength, TKeyArrayVar &aKey)
	Insert in sequence, no duplicates allowed.

IMPORT_C TInt	InsertIsqAllowDuplicatesL (const TAny *aPtr, TInt aLength, TKeyArrayVar &aKey)
	Insert in sequence, allow duplicates.

Public Member Functions inherited from CBase
	CBase ()
	Default constructor.

virtual IMPORT_C	~CBase ()
	Virtual destructor.

TAny *	operator new (TUint aSize, TAny *aBase) __NO_THROW
	Initialises the object to binary zeroes.

TAny *	operator new (TUint aSize) __NO_THROW
	Allocates the object from the heap and then initialises its contents to binary zeroes.

TAny *	operator new (TUint aSize, TLeave)
	Allocates the object from the heap and then initialises its contents to binary zeroes.

TAny *	operator new (TUint aSize, TUint aExtraSize) __NO_THROW
	Allocates the object from the heap and then initialises its contents to binary zeroes.

TAny *	operator new (TUint aSize, TLeave, TUint aExtraSize)
	Allocates the object from the heap and then initialises its contents to binary zeroes.

Protected Member Functions
IMPORT_C	CArrayVarBase (TBufRep aRep, TInt aGranularity)
	Constructor.

IMPORT_C void	SetKey (TKeyArrayVar &aKey) const
	Set the key data.

Protected Member Functions inherited from CBase
virtual IMPORT_C TInt	Extension_ (TUint aExtensionId, TAny &a0, TAny a1)
	Extension function.

Static Protected Member Functions
static IMPORT_C TInt	CountR (const CBase *aPtr)
	Return the number of items in the array.

static IMPORT_C const TAny *	AtR (const CBase *aPtr, TInt anIndex)
	Return the address of an item in the array.

Additional Inherited Members
Static Public Member Functions inherited from CBase
static IMPORT_C void	Delete (CBase *aPtr)
	Deletes the specified object.

Detailed Description

An implementation base class for variable length arrays.

It provides implementation and public functions which are common to all variable length type arrays.

The class is always derived from and is never instantiated explicitly.

API status: Published to all clients. Released API.

Definition at line 760 of file e32base.h.

Constructor & Destructor Documentation

◆ ~CArrayVarBase()

IMPORT_C CArrayVarBase::~CArrayVarBase ( )

Destructor.

Frees all resources owned by the object, prior to its destruction.

(generated from Symbian Developer Library)

◆ CArrayVarBase()

IMPORT_C CArrayVarBase::CArrayVarBase	(	TBufRep	aRep,
		TInt	aGranularity
	)

protected

Constructor.

API status

(generated from Original Symbian implementation)

API status: Internal component API.

Member Function Documentation

◆ At()

IMPORT_C TAny * CArrayVarBase::At ( TInt anIndex ) const

Return a pointer to the data in the array.

API status

(generated from Original Symbian implementation)

API status: Internal component API.

◆ AtR()

static IMPORT_C const TAny * CArrayVarBase::AtR	(	const CBase *	aPtr,
		TInt	anIndex
	)

staticprotected

Return the address of an item in the array.

API status

(generated from Original Symbian implementation)

API status: Internal component API.

◆ Compress()

IMPORT_C void CArrayVarBase::Compress ( )

Removes excess space from the array buffer.

The effect is to reduce the memory allocated to the array buffer so that it is just sufficient to represent the array. This applies to both flat and segmented array buffers.

If the array is empty, then the memory allocated to the array buffer is freed.

(generated from Symbian Developer Library)

◆ Count()

TInt CArrayVarBase::Count ( ) const

inline

Gets the number of elements held in the array.

(generated from Symbian Developer Library)

◆ CountR()

static IMPORT_C TInt CArrayVarBase::CountR ( const CBase * aPtr )

staticprotected

Return the number of items in the array.

API status

(generated from Original Symbian implementation)

API status: Internal component API.

◆ Delete() [1/2]

IMPORT_C void CArrayVarBase::Delete ( TInt anIndex )

Removes one element from the array.

Deleting elements from the array does not cause the array buffer to be automatically compressed. Call CArrayVarBase::Compress() to return excess space to the heap.

Parameters

anIndex The position within the array of the element to delete. The position is relative to zero.

Panic condition: E32USER-CBase 21, if anIndex is negative or greater than the number of elements currently in the array.

(generated from Symbian Developer Library)

◆ Delete() [2/2]

IMPORT_C void CArrayVarBase::Delete	(	TInt	anIndex,
		TInt	aCount
	)

Removes one or more contiguous elements from the array, starting at the specified position.

Deleting elements from the array does not cause the array buffer to be automatically compressed. Call CArrayVarBase::Compress() to return excess space to the heap.

Parameters

anIndex	The position within the array from where deletion of elements is to start. The position is relative to zero, i.e. zero implies that elements, starting with the first, are deleted from the array.
aCount	The number of elements to be deleted from the array.

Panic condition: E32USER-CBase 21, if anIndex is negative or greater than or equal to the number of elements currently in the array.

Panic condition: E32USER-CBase 25, if aCount is negative.

Panic condition: E32USER-CBase 29, if the sum of anIndexPos and aCount is greater than the number of elements currently in the array.

(generated from Symbian Developer Library)

◆ ExpandL()

IMPORT_C TAny * CArrayVarBase::ExpandL	(	TInt	anIndex,
		TInt	aLength
	)

Expand the array at anIndex.

API status

(generated from Original Symbian implementation)

API status: Internal component API.

◆ Find()

IMPORT_C TInt CArrayVarBase::Find	(	const TAny *	aPtr,
		TKeyArrayVar &	aKey,
		TInt &	anIndex
	)		const

Find using a sequential search.

API status

(generated from Original Symbian implementation)

API status: Internal component API.

◆ FindIsq()

IMPORT_C TInt CArrayVarBase::FindIsq	(	const TAny *	aPtr,
		TKeyArrayVar &	aKey,
		TInt &	anIndex
	)		const

Find using a binary search.

API status

(generated from Original Symbian implementation)

API status: Internal component API.

◆ InsertIsqAllowDuplicatesL()

IMPORT_C TInt CArrayVarBase::InsertIsqAllowDuplicatesL	(	const TAny *	aPtr,
		TInt	aLength,
		TKeyArrayVar &	aKey
	)

Insert in sequence, allow duplicates.

API status

(generated from Original Symbian implementation)

API status: Internal component API.

◆ InsertIsqL()

IMPORT_C TInt CArrayVarBase::InsertIsqL	(	const TAny *	aPtr,
		TInt	aLength,
		TKeyArrayVar &	aKey
	)

Insert in sequence, no duplicates allowed.

API status

(generated from Original Symbian implementation)

API status: Internal component API.

◆ InsertL()

IMPORT_C void CArrayVarBase::InsertL	(	TInt	anIndex,
		const TAny *	aPtr,
		TInt	aLength
	)

Insert a new record in the array.

API status

(generated from Original Symbian implementation)

API status: Internal component API.

◆ Length()

IMPORT_C TInt CArrayVarBase::Length ( TInt anIndex ) const

Gets the length of a specific element.

Parameters

anIndex The position of the element within the array. The position is relative to zero, (i.e. the first element in the array is at position 0).

Panic condition: E32USER-CBase 21, if anIndex is negative or is greater than the number of elements currently in the array.

(generated from Symbian Developer Library)

◆ Reset()

IMPORT_C void CArrayVarBase::Reset ( )

Deletes all elements from the array and frees the memory allocated to the array buffer.

As each element of a variable array is contained within its own heap cell, this function has the effect of freeing all such cells.

(generated from Symbian Developer Library)

◆ SetKey()

IMPORT_C void CArrayVarBase::SetKey ( TKeyArrayVar & aKey ) const

protected

Set the key data.

API status

(generated from Original Symbian implementation)

API status: Internal component API.

◆ Sort()

IMPORT_C TInt CArrayVarBase::Sort ( TKeyArrayVar & aKey )

Sorts the elements of the array into key sequence.

Parameters

aKey	The key object defining the properties of the key.

(generated from Symbian Developer Library)
