Base class for arrays of fixed length objects. More...

#include <e32base.h>

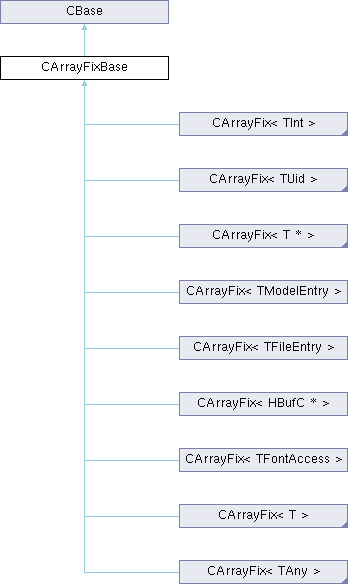

Inheritance diagram for CArrayFixBase:

Public Member Functions
IMPORT_C	~CArrayFixBase ()
	Destructor.

TInt	Count () const
	Gets the number of elements held in the array.

TInt	Length () const
	Gets the length of an element.

IMPORT_C void	Compress ()
	Compresses the array.

IMPORT_C void	Reset ()
	Deletes all elements from the array and frees the memory allocated to the array buffer.

IMPORT_C TInt	Sort (TKeyArrayFix &aKey)
	Sorts the elements of the array into key sequence.

IMPORT_C TAny *	At (TInt anIndex) const
	Index into the array.

IMPORT_C TAny *	End (TInt anIndex) const
	Return a pointer past contiguous elements starting at anIndex.

IMPORT_C TAny *	Back (TInt anIndex) const
	Return a pointer to contiguous elements before anIndex.

IMPORT_C void	Delete (TInt anIndex)
	Deletes a single element from the array at a specified position.

IMPORT_C void	Delete (TInt anIndex, TInt aCount)
	Deletes one or more contiguous elements from the array, starting at a specific position.

IMPORT_C TAny *	ExpandL (TInt anIndex)
	Expand the array to make room for a new record at anIndex.

IMPORT_C TInt	Find (const TAny *aPtr, TKeyArrayFix &aKey, TInt &anIndex) const
	Find in the array using a sequential search.

IMPORT_C TInt	FindIsq (const TAny *aPtr, TKeyArrayFix &aKey, TInt &anIndex) const
	Find in the array using a binary search.

IMPORT_C void	InsertL (TInt anIndex, const TAny *aPtr)
	Insert a record into the array.

IMPORT_C void	InsertL (TInt anIndex, const TAny *aPtr, TInt aCount)
	Insert aCount records into the array.

IMPORT_C TInt	InsertIsqL (const TAny *aPtr, TKeyArrayFix &aKey)
	Insert in sequence, no duplicates allowed.

IMPORT_C TInt	InsertIsqAllowDuplicatesL (const TAny *aPtr, TKeyArrayFix &aKey)
	Insert in sequence, allow duplicates.

IMPORT_C void	ResizeL (TInt aCount, const TAny *aPtr)
	Resize the array to contain aCount records, copying a record into any new slots.

Public Member Functions inherited from CBase
	CBase ()
	Default constructor.

virtual IMPORT_C	~CBase ()
	Virtual destructor.

TAny *	operator new (TUint aSize, TAny *aBase) __NO_THROW
	Initialises the object to binary zeroes.

TAny *	operator new (TUint aSize) __NO_THROW
	Allocates the object from the heap and then initialises its contents to binary zeroes.

TAny *	operator new (TUint aSize, TLeave)
	Allocates the object from the heap and then initialises its contents to binary zeroes.

TAny *	operator new (TUint aSize, TUint aExtraSize) __NO_THROW
	Allocates the object from the heap and then initialises its contents to binary zeroes.

TAny *	operator new (TUint aSize, TLeave, TUint aExtraSize)
	Allocates the object from the heap and then initialises its contents to binary zeroes.

Protected Member Functions
IMPORT_C	CArrayFixBase (TBufRep aRep, TInt aRecordLength, TInt aGranularity)
	Constructor.

IMPORT_C void	InsertRepL (TInt anIndex, const TAny *aPtr, TInt aReplicas)
	Insert aReplicas copies of a record into the array.

IMPORT_C void	SetKey (TKeyArrayFix &aKey) const
	Set the key data.

IMPORT_C void	SetReserveFlatL (TInt aCount)
	Reserve space to contain aCount items.

Protected Member Functions inherited from CBase
virtual IMPORT_C TInt	Extension_ (TUint aExtensionId, TAny &a0, TAny a1)
	Extension function.

Static Protected Member Functions
static IMPORT_C TInt	CountR (const CBase *aPtr)
	Return the number of items in the array.

static IMPORT_C const TAny *	AtR (const CBase *aPtr, TInt anIndex)
	Return the address of an item in the array.

Additional Inherited Members
Static Public Member Functions inherited from CBase
static IMPORT_C void	Delete (CBase *aPtr)
	Deletes the specified object.

Detailed Description

Base class for arrays of fixed length objects.

It provides implementation and public functions which are common to all arrays of this type.

The class is always derived from and is never instantiated explicitly.

API status: Published to all clients. Released API.

Definition at line 335 of file e32base.h.

Constructor & Destructor Documentation

◆ ~CArrayFixBase()

IMPORT_C CArrayFixBase::~CArrayFixBase ( )

Destructor.

This frees all resources owned by the object, prior to its destruction.

(generated from Symbian Developer Library)

◆ CArrayFixBase()

IMPORT_C CArrayFixBase::CArrayFixBase	(	TBufRep	aRep,
		TInt	aRecordLength,
		TInt	aGranularity
	)

protected

Constructor.

API status

(generated from Original Symbian implementation)

API status: Internal component API.

Member Function Documentation

◆ At()

IMPORT_C TAny * CArrayFixBase::At ( TInt anIndex ) const

Index into the array.

API status

(generated from Original Symbian implementation)

API status: Internal component API.

◆ AtR()

static IMPORT_C const TAny * CArrayFixBase::AtR	(	const CBase *	aPtr,
		TInt	anIndex
	)

staticprotected

Return the address of an item in the array.

API status

(generated from Original Symbian implementation)

API status: Internal component API.

◆ Back()

IMPORT_C TAny * CArrayFixBase::Back ( TInt anIndex ) const

Return a pointer to contiguous elements before anIndex.

API status

(generated from Original Symbian implementation)

API status: Internal component API.

◆ Compress()

IMPORT_C void CArrayFixBase::Compress ( )

Compresses the array.

The function removes the excess space from the array buffer. The effect is to reduce the memory allocated to the array buffer so that it is just sufficient to contain the elements of the array. This applies to both flat and segmented array buffers.

If the array is empty, then the memory allocated to the array buffer is freed.

(generated from Symbian Developer Library)

◆ Count()

TInt CArrayFixBase::Count ( ) const

inline

Gets the number of elements held in the array.

(generated from Symbian Developer Library)

◆ CountR()

static IMPORT_C TInt CArrayFixBase::CountR ( const CBase * aPtr )

staticprotected

Return the number of items in the array.

API status

(generated from Original Symbian implementation)

API status: Internal component API.

◆ Delete() [1/2]

IMPORT_C void CArrayFixBase::Delete ( TInt anIndex )

Deletes a single element from the array at a specified position.

Deleting elements from the array does not cause the array buffer to be automatically compressed. Call CArrayFixBase::Compress() to return excess space to the heap.

Parameters

anIndex The position within the array at which to delete the element, This is a value relative to zero.

Panic condition: E32USER-CBase 21, if anIndex is negative or is greater than or equal to the number of elements currently in the array.

(generated from Symbian Developer Library)

◆ Delete() [2/2]

IMPORT_C void CArrayFixBase::Delete	(	TInt	anIndex,
		TInt	aCount
	)

Deletes one or more contiguous elements from the array, starting at a specific position.

Deleting elements from the array does not cause the array buffer to be automatically compressed. Call CArrayFixBase::Compress() to return excess space to the heap.

Parameters

anIndex	The position within the array from where deletion of elements is to start. The position is relative to zero, i.e. zero implies that elements, starting with the first, are deleted from the array.
aCount	The number of contiguous elements to be deleted from the array.

Panic condition: E32USER-CBase 21, if anIndex is negative, or is greater than or equal to the number of elements currently in the array.

Panic condition: E32USER-CBase 22, if aCount is negative.

Panic condition: E32USER-CBase 29, if the sum of anIndex and aCount is greater than or equal to the number of elements currently in the array.

(generated from Symbian Developer Library)

◆ End()

IMPORT_C TAny * CArrayFixBase::End ( TInt anIndex ) const

Return a pointer past contiguous elements starting at anIndex.

API status

(generated from Original Symbian implementation)

API status: Internal component API.

◆ ExpandL()

IMPORT_C TAny * CArrayFixBase::ExpandL ( TInt anIndex )

Expand the array to make room for a new record at anIndex.

API status

(generated from Original Symbian implementation)

API status: Internal component API.

◆ Find()

IMPORT_C TInt CArrayFixBase::Find	(	const TAny *	aPtr,
		TKeyArrayFix &	aKey,
		TInt &	anIndex
	)		const

Find in the array using a sequential search.

API status

(generated from Original Symbian implementation)

API status: Internal component API.

◆ FindIsq()

IMPORT_C TInt CArrayFixBase::FindIsq	(	const TAny *	aPtr,
		TKeyArrayFix &	aKey,
		TInt &	anIndex
	)		const

Find in the array using a binary search.

API status

(generated from Original Symbian implementation)

API status: Internal component API.

◆ InsertIsqAllowDuplicatesL()

IMPORT_C TInt CArrayFixBase::InsertIsqAllowDuplicatesL	(	const TAny *	aPtr,
		TKeyArrayFix &	aKey
	)

Insert in sequence, allow duplicates.

API status

(generated from Original Symbian implementation)

API status: Internal component API.

◆ InsertIsqL()

IMPORT_C TInt CArrayFixBase::InsertIsqL	(	const TAny *	aPtr,
		TKeyArrayFix &	aKey
	)

Insert in sequence, no duplicates allowed.

API status

(generated from Original Symbian implementation)

API status: Internal component API.

◆ InsertL() [1/2]

IMPORT_C void CArrayFixBase::InsertL	(	TInt	anIndex,
		const TAny *	aPtr
	)

Insert a record into the array.

API status

(generated from Original Symbian implementation)

API status: Internal component API.

◆ InsertL() [2/2]

IMPORT_C void CArrayFixBase::InsertL	(	TInt	anIndex,
		const TAny *	aPtr,
		TInt	aCount
	)

Insert aCount records into the array.

API status

(generated from Original Symbian implementation)

API status: Internal component API.

◆ InsertRepL()

IMPORT_C void CArrayFixBase::InsertRepL	(	TInt	anIndex,
		const TAny *	aPtr,
		TInt	aReplicas
	)

protected

Insert aReplicas copies of a record into the array.

API status

(generated from Original Symbian implementation)

API status: Internal component API.

◆ Length()

TInt CArrayFixBase::Length ( ) const

inline

Gets the length of an element.

(generated from Symbian Developer Library)

◆ Reset()

IMPORT_C void CArrayFixBase::Reset ( )

Deletes all elements from the array and frees the memory allocated to the array buffer.

(generated from Symbian Developer Library)

◆ ResizeL()

IMPORT_C void CArrayFixBase::ResizeL	(	TInt	aCount,
		const TAny *	aPtr
	)

Resize the array to contain aCount records, copying a record into any new slots.

API status

(generated from Original Symbian implementation)

API status: Internal component API.

◆ SetKey()

IMPORT_C void CArrayFixBase::SetKey ( TKeyArrayFix & aKey ) const

protected

Set the key data.

API status

(generated from Original Symbian implementation)

API status: Internal component API.

◆ SetReserveFlatL()

IMPORT_C void CArrayFixBase::SetReserveFlatL ( TInt aCount )

protected

Reserve space to contain aCount items.

Only for flat arrays!

API status

(generated from Original Symbian implementation)

API status: Internal component API.

◆ Sort()

IMPORT_C TInt CArrayFixBase::Sort ( TKeyArrayFix & aKey )

Sorts the elements of the array into key sequence.

Parameters

aKey	The key object defining the properties of the key.

(generated from Symbian Developer Library)
